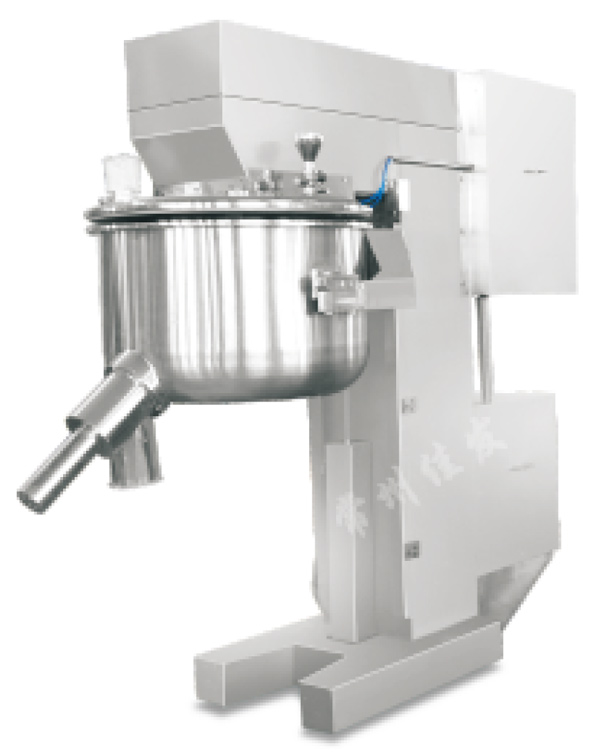

Application Overview
　　Widely applicable for powder mixing and wet granulation in industries such as pharmaceuticals, food, chemicals, metallurgy, dyes, etc.
Equipment characteristics
★The machine is evenly mixed, with a small amount of adhesive and strong bonding ability.
★The production process is sealed without dead corners, with uniform granulation and convenient cleaning, fully meeting GMP requirements.
★Compared to horizontal wet method, it has a more reasonable mixing effect.
Outline Dimensional Drawing
Project | Specifications | 10 | 100 | 200 | 400 |
Volume of raw material container | L | 10 | 100 | 200 | 400 |
Working capacity | L | 6 | 65 | 130 | 275 |
Stirring speed | rpm | 430/660 | 170/255 | 155/193 | 106/160 |
Stirring power | kw | 0.6/1.1 | 6.5/8 | 13/16 | 18/26 |
Crushing speed | rpm | 1410/2850 | 1400/2800 | 1500/3000 | 1500/3000 |
Crushing power | kw | 0.6/1.5 | 2.4/3 | 4.5/5.5 | 5.5/7.5 |
Host size | H1(mm) | 360 | 1100 | 1200 | 1300 |
H2(mm) | 950 | 2100 | 2350 | 2650 | |
B(mm) | 350 | 850 | 1050 | 1215 | |
L(mm) | 1050 | 2400 | 2600 | 2780 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
